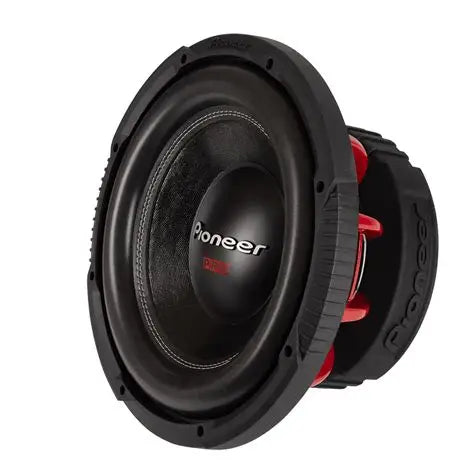

PIONEER TS-W3020 PRO WOOFER

The Pioneer TS-W3020PRO is a 12” high-efficiency subwoofer from the PRO Samurai Series, delivering up to 3500W max power and 1800W RMS for extreme sound pressure and deep bass.

🔊 Key Features

• Subwoofer Size: 12” (30 cm)

• Maximum Power: 3500W

• Nominal Power (RMS): 1800W

• Frequency Response: 20Hz – 200Hz

• Sensitivity: 86–88 dB (1W/1m)

• Impedance: Dual 2Ω voice coils (2Ω + 2Ω)

• Cone Material: Optimally blended pulp cone

• Voice Coil: 4-layer copper-clad aluminum for high sensitivity and heat resistance

• Magnet Type: Large ferrite magnet for high power handling

• Basket: Aluminum for heat dissipation and rigidity

• Recommended Enclosure Volume:

  • Vented: 1.75 ft³ (49.5 liters)

  • Sealed: 1.25 ft³ (35 liters)

• Speaker Grill: Not included
