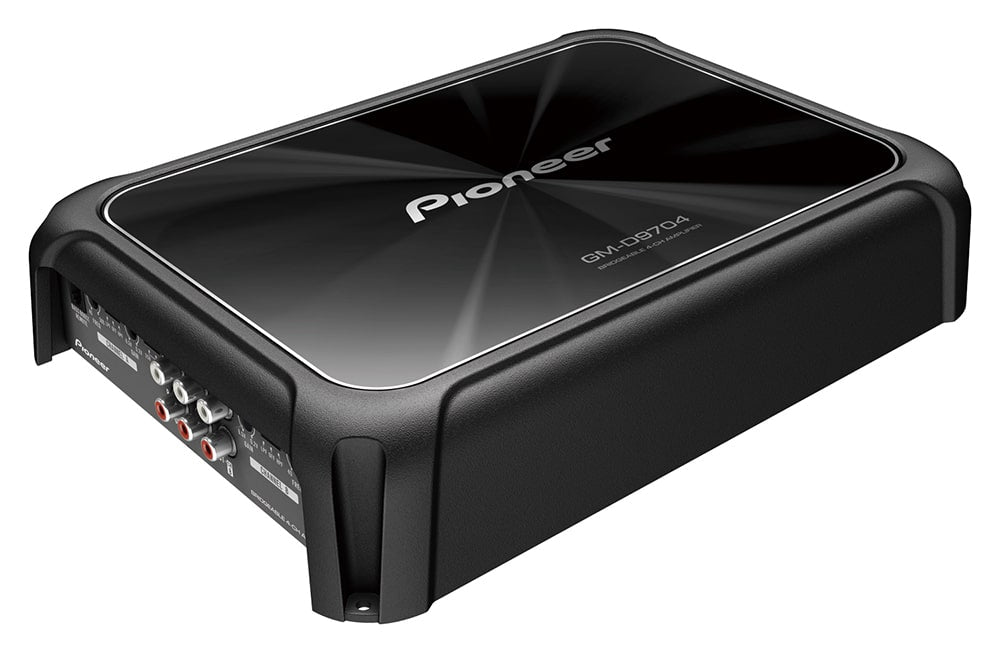

PIONEER GM-D9704 AMPLIFIER 1600WtS

The Pioneer GM-D9704 is a Class-D 4-channel bridgeable amplifier with 1600W max power output, designed for high-efficiency, compact car audio installations.

🔊 Key Features

• Amplifier Class: Class-FD (Digital)

• Channels: 4/3/2 bridgeable configuration

• Maximum Power Output: 1600W total

• RMS Power Output:

  • 130W × 4 @ 4Ω

  • 200W × 4 @ 2Ω

  • 400W × 2 bridged @ 4Ω

• Frequency Response: 10Hz – 50kHz

• Impedance Range: 1Ω to 8Ω

• Total Harmonic Distortion (THD): < 0.05%

• Signal-to-Noise Ratio: > 95 dB

• Bass Boost:

  • Adjustable at 50Hz

  • 0 dB to +18 dB

• Crossover Type: Variable HPF/LPF

• Crossover Frequency Range: 40Hz – 500Hz

• Inputs:

  • RCA level input

  • Speaker level input

• Auto Signal Sensing & Turn-On: ✅

• Bass Boost Remote: Included (B-channel)
