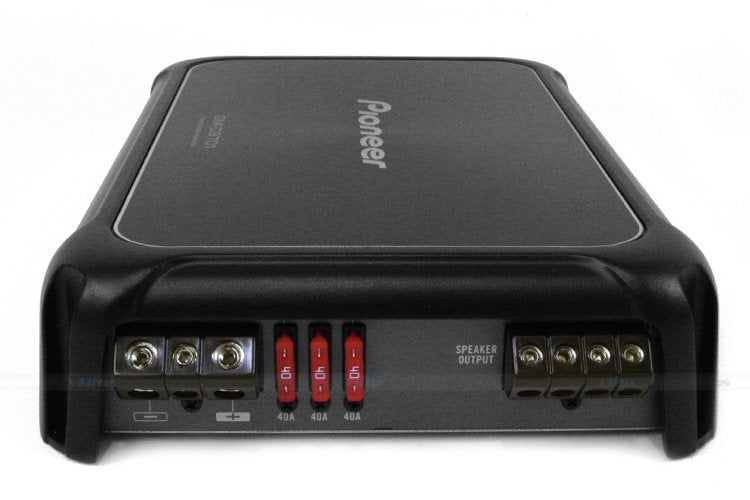

PIONEER GM-D9701 AMPLIFIER 1CH/2400W

The Pioneer GM-D9701 is a Class-D mono amplifier delivering up to 2400W max power, engineered for deep, high-impact bass in car audio systems. It’s 1-ohm stable and includes a wired bass boost remote for precise control.

🔊 Key Features

• Amplifier Type: Class-D Mono (1-channel)

• Maximum Power Output: 2400W

• RMS Power Output:

  • 800W × 1 @ 1Ω

  • 500W × 1 @ 2Ω

  • 300W × 1 @ 4Ω

• Frequency Response: 10Hz – 240Hz

• Total Harmonic Distortion (THD): < 0.05%

• Signal-to-Noise Ratio: > 100 dB

• Bass Boost:

  • Adjustable at 50Hz

  • 0 dB to +18 dB

• Low-Pass Filter (LPF):

  • Variable from 40Hz to 240Hz

• Inputs:

  • RCA level input

  • Speaker level input (no adapter needed)

• Auto Signal Sensing & Turn-On: ✅

• Remote Control: Wired bass boost remote included

• CEA-2006 Compliant: ✅
