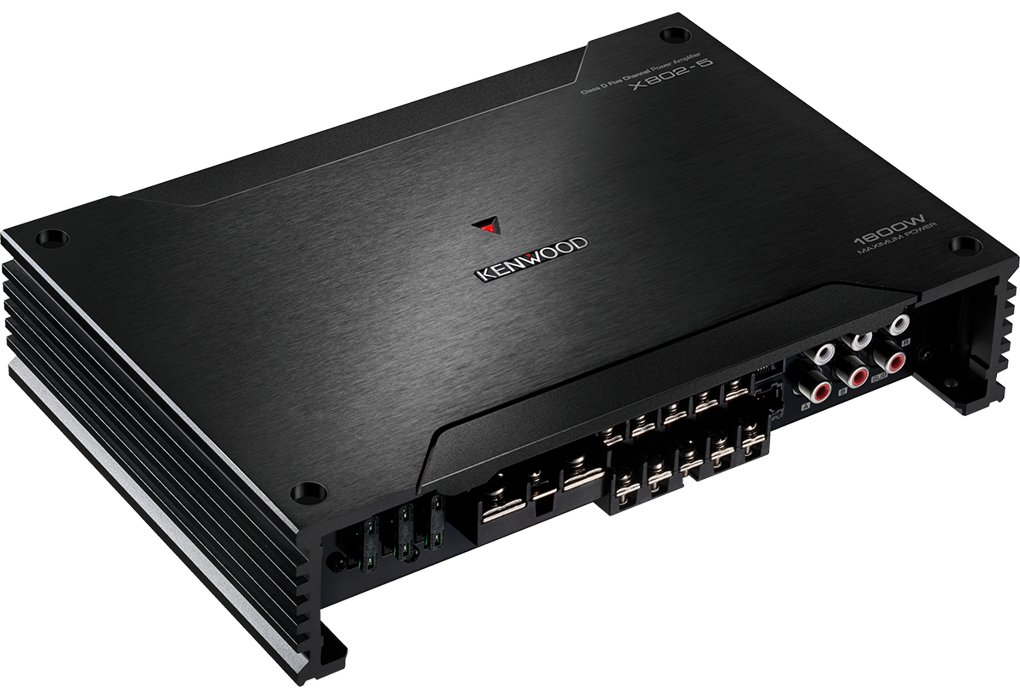

KENWOOD X802-5 AMPLIFIER

The Kenwood X802-5 is a high-performance Class D 5-channel amplifier designed for full-range and subwoofer applications, delivering up to 1600W max power with support for high-resolution audio.

🔊 Key Specifications

• Amplifier Type: Class D Full Range Digital Amplifier

• CEA-2006 Compliant: Yes

• High-Resolution Audio Certified: Yes

• Max Power Output: 1600W

• Rated Power Output:

  • 50W × 4 + 300W × 1 @ 4Ω

  • 75W × 4 + 500W × 1 @ 2Ω

  • 150W × 2 (bridged) @ 4Ω

🎚️ Features & Controls

• Filters:

  • Variable High-Pass Filter (HPF)

  • Variable Low-Pass Filter (LPF)

• Bass Boost: Adjustable

• Speaker Level Input: Yes

• Signal Sensing Turn-On: Yes

• Load Capability: Stable at 2Ω

• Terminals:

  • Screw-type terminals

  • One-side terminal layout for clean installation

• Heat Management: Die-cast aluminum heat sink

• Output Coil with Magnetic Shield: Reduces noise and enhances clarity
