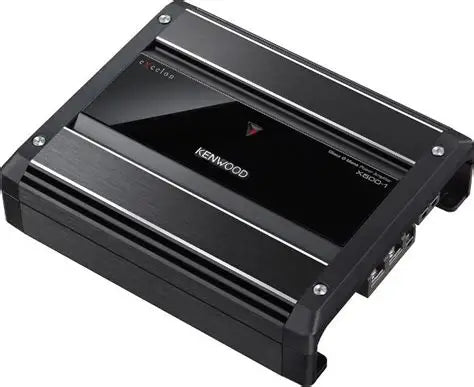

KENWOOD X5001-1 MONO AMPLIFIER

The Kenwood X5001-1 is a compact Class D mono amplifier designed for subwoofer applications, delivering up to 1000W max power and 500W RMS at 2 ohms—ideal for high-performance car audio systems.

🔊 Key Specifications

• Amplifier Type: Class D Mono Power Amplifier

• Max Power Output: 1000W

• RMS Power Output:

  • 300W × 1 @ 4Ω

  • 500W × 1 @ 2Ω

• Frequency Response: 20Hz – 200Hz

• Signal-to-Noise Ratio: ≥ 85 dB

• Input Sensitivity: 0.2V – 5.0V

🎚️ Features & Controls

• Variable Low-Pass Filter: 50Hz – 200Hz

• Bass Boost: 0 to +18dB at 40Hz

• Infrasonic Filter: Cuts frequencies below 25Hz for cleaner bass

• Optional Wired Remote Ready: For subwoofer level control

• Speaker Level Input: With signal sensing turn-on

• Output Coil with Magnetic Shield: Reduces noise and distortion

• High-Quality Capacitors: PMLCAPs for clearer sound reproduction

• One-Side Connection Layout: Simplifies installation and wiring
