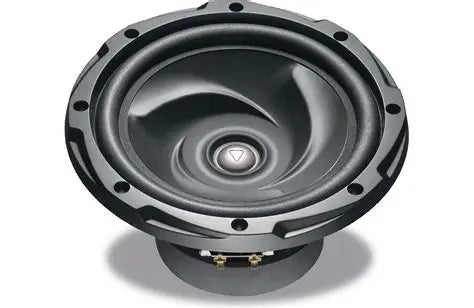

KENWOOD KFC-W3010 WOOFER

The Kenwood KFC-W3010 is a 12" (300mm) component subwoofer designed for deep, clean bass with a peak power of 1000W and a rugged “Typhoon” cone—ideal for sealed, ported, or free-air installations.

🔊 Key Specifications

• Model: Kenwood KFC-W3010

• Speaker Type: Component subwoofer

• Speaker Size: 12" (300mm)

• Peak Power Handling: 1000 Watts

• Maximum Input Power: 400 Watts

• Rated (RMS) Power Handling: 200 Watts

• Frequency Response: ~25 Hz – 800 Hz

• Sensitivity: ~93 dB (1W/1m)

• Impedance: 4 ohms

• Cone Material: Pearl Mica injection-molded polypropylene

• Cone Design: “Typhoon” shaped diaphragm

• Magnet Type: Dual magnet drive with extended pole piece

• Terminals: Gold-plated screw/slide type

• Installation Type: Sealed, ported, or free-air

🧠 Design & Features

• Basket Material: Steel for durability

• Magnet Cover: Not included

• Gasket Installation: One-way fixed

• Enclosure Recommendations:

  • Sealed box: 0.8 – 1.5 cu ft (22.7 – 42.5 L)

  • Ported box: 1.0 – 2.0 cu ft with ~3″ × 7″ port

🎯 Ideal For

• Car audio enthusiasts seeking powerful low-end performance

• Systems needing a versatile subwoofer for various enclosure types

• Users upgrading factory sound with high-output bass
