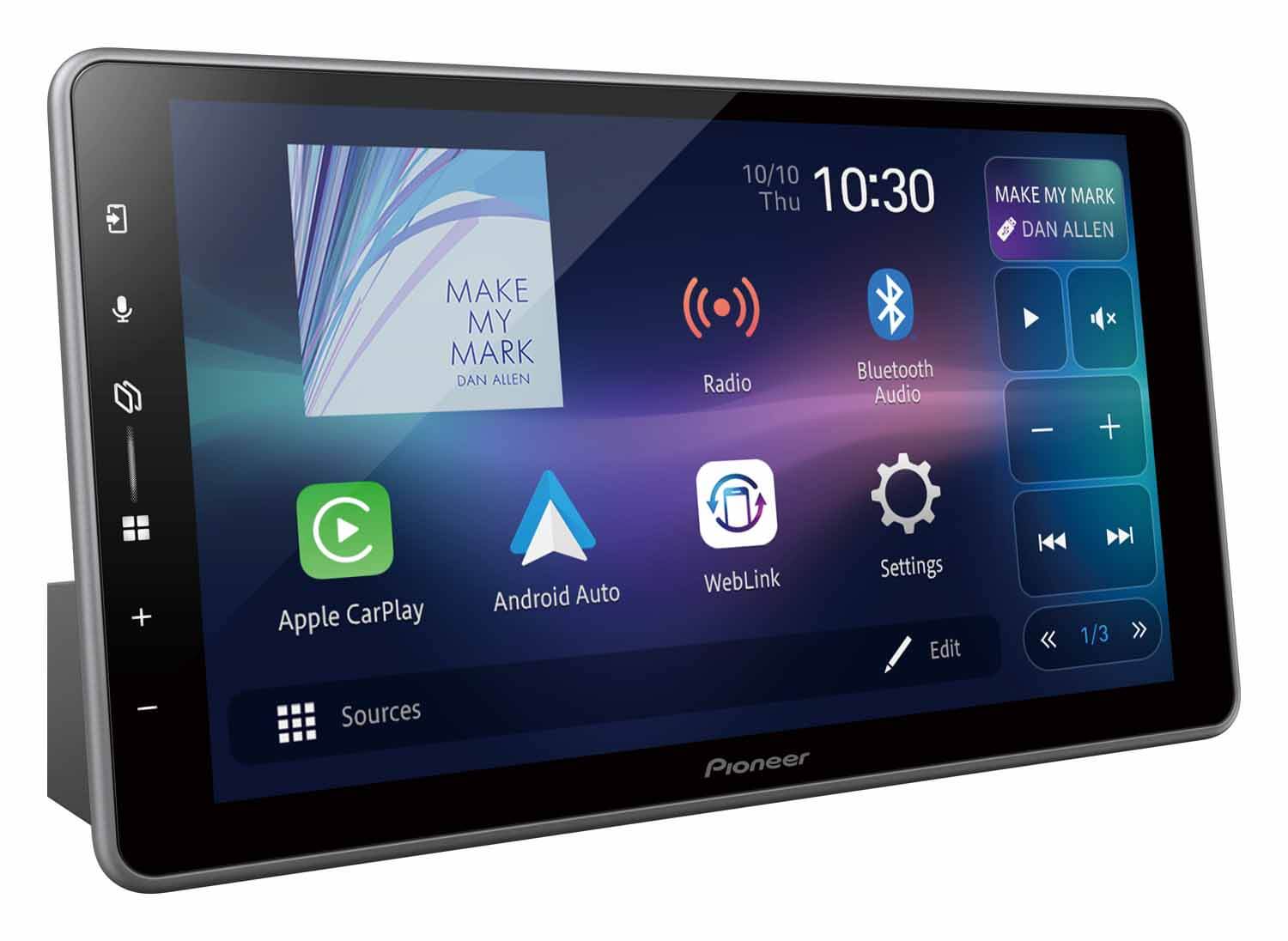

The Pioneer DMH-ZF7650BT is a 9-inch floating touchscreen multimedia receiver featuring wireless Apple CarPlay, Android Auto, WebLink Cast, and advanced sound tuning—ideal for modern vehicles seeking premium connectivity and audio control.

📺 Display & Design

• Screen Size: 9-inch WSVGA capacitive touchscreen

• Resolution: 1024 × 600 pixels

• Design: Floating display with modular 1-DIN rear chassis

• Adjustability: Tilt, height, and depth customization for flexible dashboard fit

• Interface: Direct Launch Key for quick access to CarPlay/Android Auto

• GUI Modes: Light and Dark themes

📱 Connectivity & Smart Features

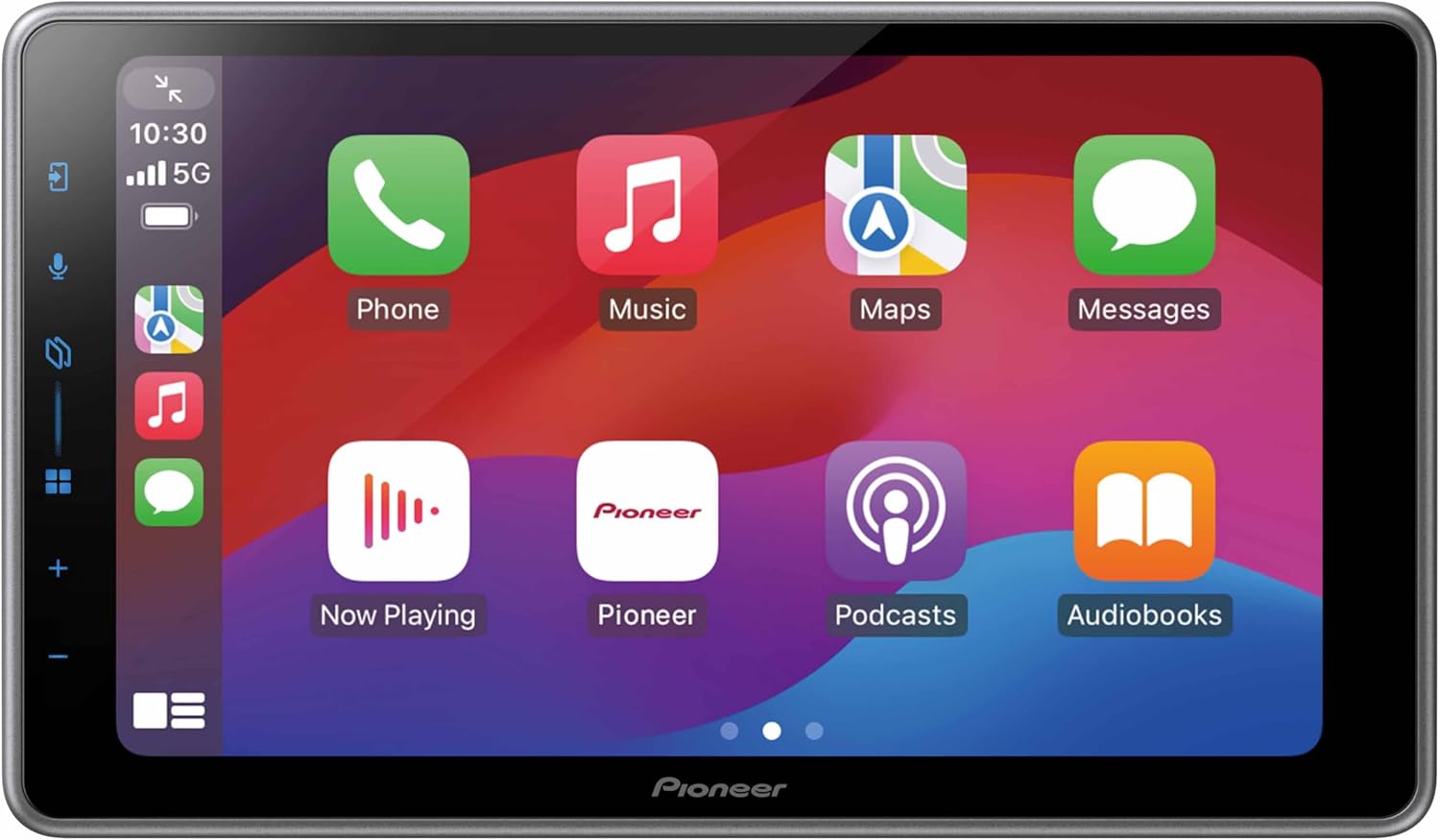

• Apple CarPlay & Android Auto: Wireless and wired support

• Bluetooth (Dual Phone): Hands-free calling and audio streaming

• WebLink® Cast: Wired phone mirroring for iOS and Android

• USB Interface: Rear USB with 3A Quick Charge

• HDMI Input: For external video sources

• Rear Camera Input: With parking assist guidelines

• iDataLink Maestro Compatible: For vehicle integration

• PxLink App: Personalization and remote control

🔊 Audio & Multimedia

• Power Output: MOSFET 50W × 4 channels

• DSP: Advanced Sound Tuning

• Equalizer: 13-band graphic EQ

• Subwoofer Control: Independent level and crossover settings

• High-Resolution Audio Support: WAV, FLAC, DSD

• Video Playback: Full HD via USB and HDMI

• Audio Enhancements:

  • Master Sound Reviver

  • Dynamic Bass Enhancer

  • Time Alignment
