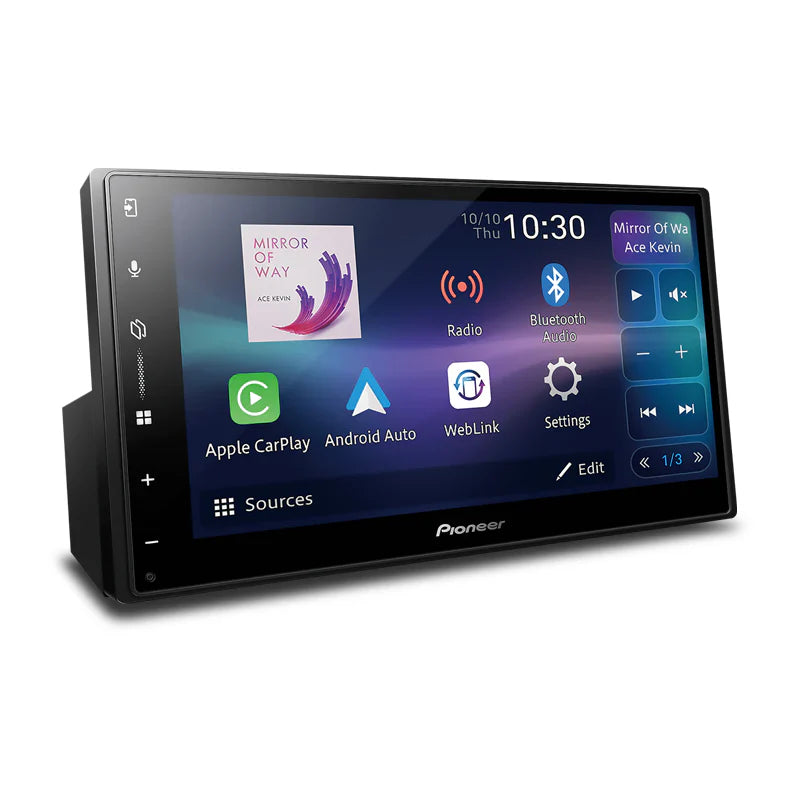

The Pioneer DMH-A5650BT is a 6.8-inch capacitive touchscreen multimedia receiver featuring wireless Apple CarPlay, Android Auto, Bluetooth, and WebLink Cast—designed for modern vehicles with a compact 1-DIN chassis.

📺 Display & Design

• Screen Size: 6.8-inch WVGA capacitive touchscreen

• Resolution: 800 × 480 pixels

• Touch Panel: Capacitive (multi-touch, high sensitivity)

• Chassis Type: 1-DIN short chassis for flexible installation

• Interface: Shortcut key and one-touch access to key functions

📱 Connectivity & Smart Features

• Apple CarPlay & Android Auto: Wireless and wired support

• Bluetooth (Dual Phone): Hands-free calling and audio streaming

• WebLink® / WebLink® Cast: Wired phone mirroring for iOS and Android

• USB Interface: Rear USB with 3A Quick Charge

• Reverse Camera Input: With parking assist guidelines

• 3 × 4V Pre-Outs: Front, rear, and subwoofer outputs for system expansion

• FM/AM Tuner: With RDS support

• Smartphone Mirroring: 2-way control via AutoLink app (Android only)

🔊 Audio & Multimedia

• Power Output: MOSFET 50W × 4 channels

• Equalizer: 13-band graphic EQ

• Subwoofer Control: Independent level and crossover settings

• Audio Playback: MP3, WMA, WAV, FLAC

• Video Playback: MPEG-4, JPEG via USB

• Sound Enhancements:

  • Bass Boost

  • Loudness Control

  • High-Pass Filter (HPF)

  • Time Alignment
