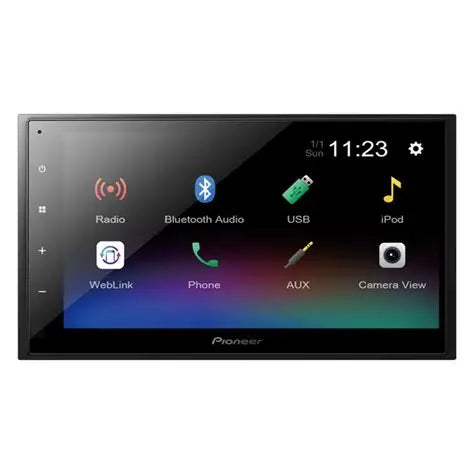

The Pioneer DMH-A345BT is a 6.8-inch capacitive touchscreen AV receiver with Bluetooth and WebLink® Cast, designed for smartphone mirroring, hands-free calling, and multimedia playback.

📺 Display & Design

• Screen Size: 6.8-inch WVGA capacitive touchscreen

• Resolution: 800 × 480 pixels

• Touch Panel Type: Fully-flat capacitive with multi-touch support

• Design: Bezel-less front panel with intuitive graphical interface

• Mounting Type: Double-DIN universal fit

📱 Connectivity & Smart Features

• Bluetooth® Built-In:

  • Hands-free calling

  • Wireless audio streaming

  • Dual phone connection

• WebLink® Cast:

  • 2-way smartphone mirroring for iPhone and Android

  • Requires WebLink Host app on the smartphone

• Direct Control for Android Phones:

  • Charge and control compatible Android devices via USB

• USB Interface:

  • Rear USB port with Quick Charge support

• Camera Input:

  • Rear-view camera support with parking assist guidelines

• AUX Input:

  • Front-mounted for quick access

• Pre-Outs:

  • 2 RCA outputs (front and rear) for external amplifiers

🔊 Audio & Multimedia

• Power Output: MOSFET 50W × 4 channels

• Equalizer: 13-band graphic EQ

• Audio Playback: MP3, WMA, WAV

• Video Playback: Full HD via USB (MPEG-4, JPEG)

• Sound Enhancements:

  • Bass Boost

  • Loudness Control

  • High-Pass Filter (HPF)
