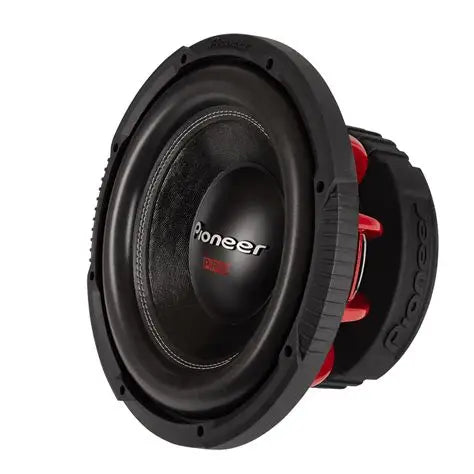

The Pioneer TS-W3020PRO is a 12” high-efficiency subwoofer from the PRO Samurai Series, delivering up to 3500W max power and 1800W RMS for extreme sound pressure and deep bass.
Subwoofer Size: 12” (30 cm)
Maximum Power: 3500W
Nominal Power (RMS): 1800W
Frequency Response: 20Hz – 200Hz
Sensitivity: 86–88 dB (1W/1m)
Impedance: Dual 2Ω voice coils (2Ω + 2Ω)
Cone Material: Optimally blended pulp cone
Voice Coil: 4-layer copper-clad aluminum for high sensitivity and heat resistance
Magnet Type: Large ferrite magnet for high power handling
Basket: Aluminum for heat dissipation and rigidity
Recommended Enclosure Volume:
Vented: 1.75 ft³ (49.5 liters)
Sealed: 1.25 ft³ (35 liters)
Speaker Grill: Not included
