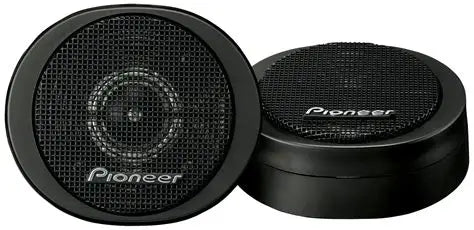

The Pioneer TS-S20 is a 20mm high-power component dome tweeter with 200W max power and 50W RMS, designed to deliver crisp, detailed highs in car audio systems.

🔊 Key Features

• Tweeter Size: 20mm (¾”)

• Maximum Music Power: 200W

• Nominal Power (RMS): 50W

• Impedance: 8Ω

• Sensitivity: 92 dB (1W/1m)

• Frequency Response:

  • With network: 3kHz – 26kHz

  • Without network: 1.2kHz – 26kHz

• Dome Material: Amorphous titanium-coated PPS (polyphenylene sulfide)

• Magnet Type: Strontium high-performance magnet

• Built-in LC Network: Attached to speaker cable for crossover filtering

• Mounting Options: Flush, surface, or angle mount

• Speaker Grill: Included
