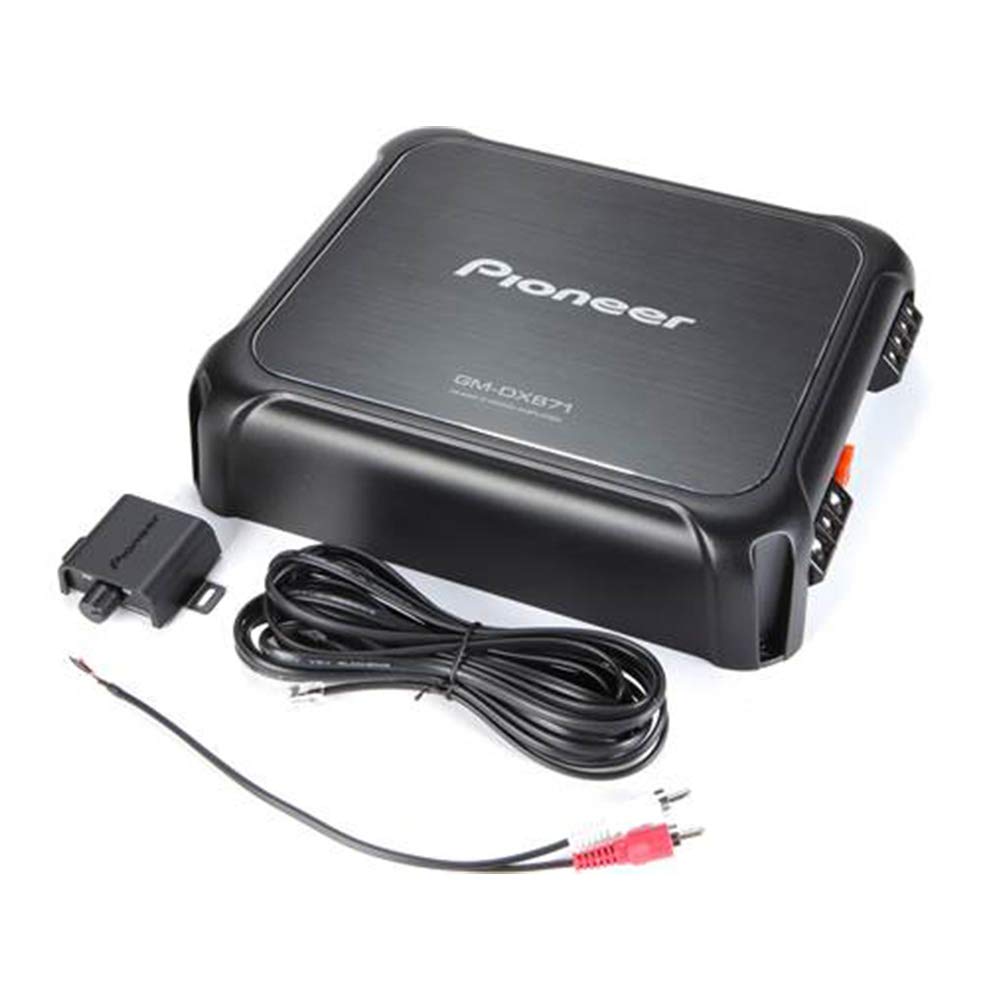

The Pioneer GM-DC871 is a Class-D mono-channel amplifier from the Champion Series, delivering up to 1600W max power and 500W RMS at 2Ω, designed for deep, powerful bass in high-performance car audio systems.

🔊 Key Features

• Amplifier Type: Class-D Mono (1-channel)

• Maximum Power Output: 1600W × 1 @ 2Ω

• RMS Power Output:

  • 500W × 1 @ 2Ω

  • 300W × 1 @ 4Ω

• Frequency Response: 10Hz – 240Hz

• Impedance Range: 1Ω to 8Ω

• Signal-to-Noise Ratio: 100 dB

• Total Harmonic Distortion (THD): < 0.5% @ 100Hz

• Bass Boost:

  • Two-step boost at 56Hz

  • Adjustable from 0 dB to +18 dB

• Low-Pass Filter (LPF):

  • Variable from 40Hz to 240Hz

• Inputs:

  • RCA level input

  • Speaker level input (no adapter needed)

• Auto Signal Sensing & Turn-On: Yes

• Cooling & Protection:

  • Thermal and short circuit protection

  • Honeycomb chassis for durability
