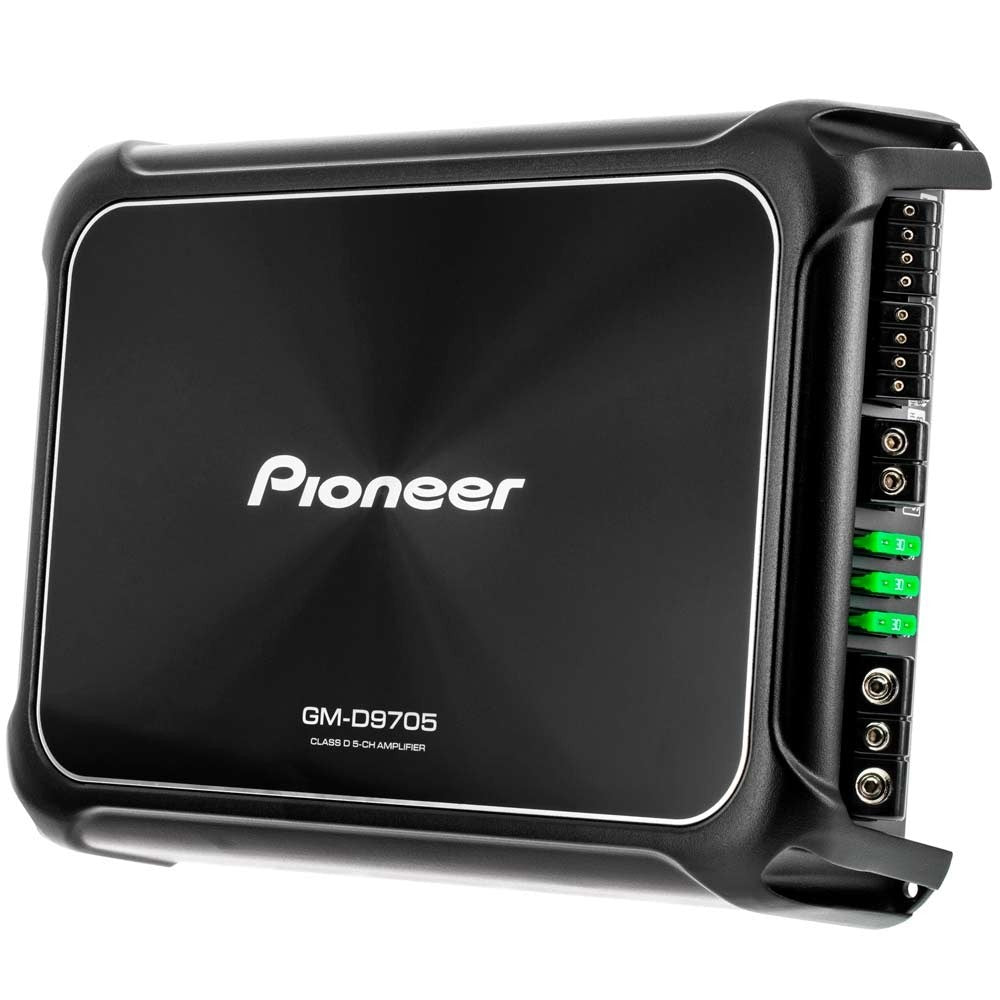

The Pioneer GM-D9705 is a Class-D 5-channel amplifier with 2000W max power, designed to power a full car audio system including front and rear speakers plus a subwoofer—all from a single compact unit.

🔊 Key Features

• Amplifier Type: Class-D (Class-FD)

• Channels: 5 (A/B for speakers + Subwoofer)

• Maximum Power Output: 2000W total

• RMS Power Output:

  • 100W × 4 @ 2Ω (A/B channels)

  • 600W × 1 @ 2Ω (Subwoofer channel)

  • 75W × 4 @ 4Ω (A/B channels)

  • 350W × 1 @ 4Ω (Subwoofer channel)

  • 200W × 2 bridged @ 4Ω (A/B channels)

• Frequency Response:

  • 10Hz – 50kHz (A/B channels)

  • 10Hz – 500Hz (Subwoofer channel)

• Impedance Range: 2Ω to 8Ω

• Total Harmonic Distortion (THD): < 0.05% (A/B @ 1kHz, Sub @ 100Hz)

• Signal-to-Noise Ratio: > 94 dB

• Bass Boost: Adjustable at 50Hz (0 dB to +18 dB)

• Crossover Type: Variable HPF/LPF

• Crossover Frequency Range: 40Hz – 500Hz

• Inputs:

  • RCA level input

  • Speaker level input

• Auto Signal Sensing & Turn-On: ✅

• Remote Control: Wired bass boost remote included
